Smart Ports: Fiber Sensing for Quayside Security and Continuity

A port is several security problems stacked in one place. There is a land boundary, a water boundary, cables and pipelines running under the seabed, and quayside structures under constant mechanical load. The smart port fiber sensing approach treats those as one monitoring problem over shared infrastructure, rather than four systems that do not talk to each other.

Why ports suit distributed sensing

Three characteristics make the economics work.

Long boundaries. Port perimeters run for kilometers, over terrain that makes camera coverage expensive and gappy.

Fiber already present. Ports are heavily instrumented. Fiber runs to cranes, gates and terminal buildings, and spare strands are common.

Consequences that scale. An hour of stopped operations at a container terminal costs enough that continuous monitoring pays for itself against a single avoided incident.

What smart port fiber sensing covers on one cable

Perimeter and landside access

A buried fiber along the boundary detects footsteps, vehicles and digging, and locates them to within about a meter. That gives the control room a bearing and a distance, which is what turns an existing PTZ camera into a useful assessment tool instead of something an operator has to hunt with.

Subsea approaches and cable protection

The same technology reads vessel activity over the seabed. A ship slowing and holding position above a cable route or a restricted area registers as a moving acoustic source, and an anchor striking a cable registers unmistakably at a known point. For ports where power or telecom cables land, this is the difference between knowing which vessel was overhead and reconstructing it afterwards.

Quayside structures

Berthing loads, crane movement and vessel impact all put mechanical stress on quay walls and piles. Distributed strain and temperature sensing along those structures tracks how they are behaving under real load, which matters most in ports handling larger vessels than the quay was designed for.

Smart port fiber sensing is continuity, not just security

The framing that lands with port operators is usually availability rather than security. The same data stream that flags an intrusion also flags a crane rail developing a fault, a conveyor running hot, or a pipeline connection leaking. All of those stop operations, and none of them are security events.

Treating the fiber as an operational sensing layer rather than a security product tends to widen the internal support for it, because more than one department gets something out of it.

Starting small

A full port deployment is a large project and does not have to be the first step. The usual entry point is the single highest-consequence stretch: the cable landing, the fuel line, or the least-watched section of perimeter. One interrogator covers up to 50 km of fiber, so the first installation almost always has headroom to extend along adjacent routes without new hardware.

Making the case for smart port fiber sensing internally

Port monitoring projects stall for a predictable reason: security owns the requirement, operations owns the budget, and IT owns the fiber. A proposal framed purely as security tends to compete against cameras and lose on price per unit.

The framing that works is availability. The same cable and the same interrogator that detect an intrusion also detect a crane rail fault, a hot conveyor bearing and a leaking fuel line. Those are operational events with direct cost, and they widen the set of departments with a reason to support the project.

Smart port fiber sensing on the fiber the port already has

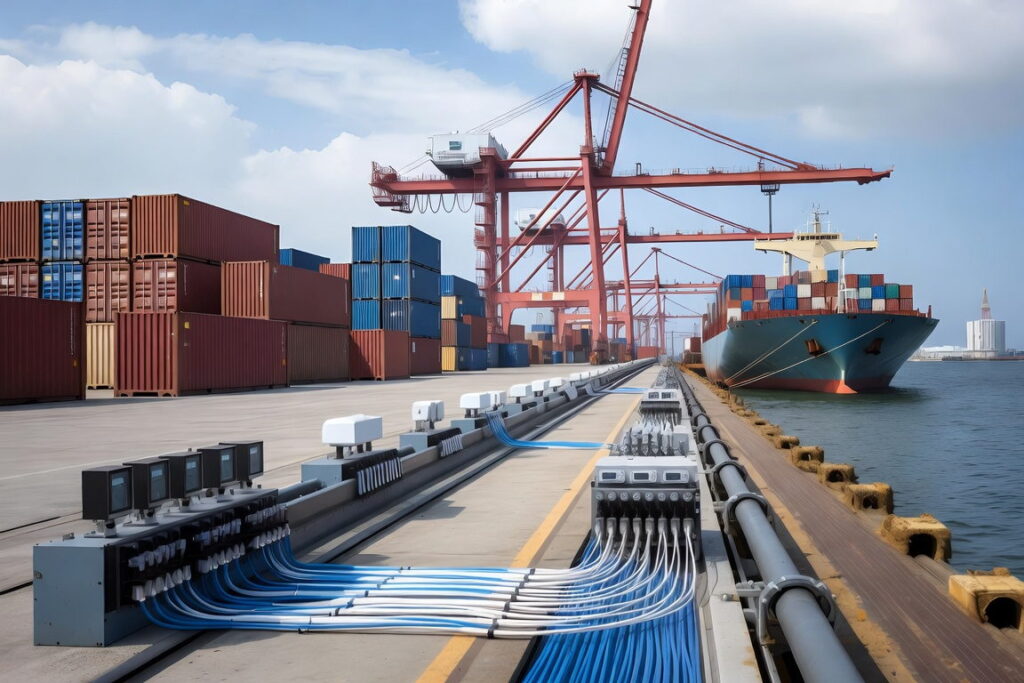

Ports are unusually well provisioned with fiber, because terminal operating systems, crane control and gate systems all need it. Spare strands are common along exactly the routes that matter: quaysides, perimeter roads and cable landings.

Before pricing any civil works, it is worth asking the network team for the fiber records. In a meaningful share of cases a first deployment can start with an interrogator in an existing rack and no trenching at all.

A staged smart port fiber sensing rollout that survives review

A full port deployment is a large number. Staging it around single-consequence sections tends to survive scrutiny better and produces evidence for the next stage.

• Stage one: the highest-consequence stretch, usually the cable landing or the fuel line.
• Stage two: the least-observed section of perimeter, using headroom on the same interrogator.
• Stage three: quayside structural monitoring, once the first two have produced findings the operations team recognizes.

Because one interrogator covers up to 50 km of fiber, stages two and three frequently need cable rather than new hardware, which is what makes the incremental cost easy to defend.
